Product Features
- UL listed and FM approved
- 35 to 1500 GPM, 40 to 184 PSI
- Cast Iron Bronze Fitted
- Close Coupled, electric driven, self-venting, bearing free pump design
- Top pull-out
- Same size suction and discharge on common centerline
- Single stuff box
- No base, coupling or guard

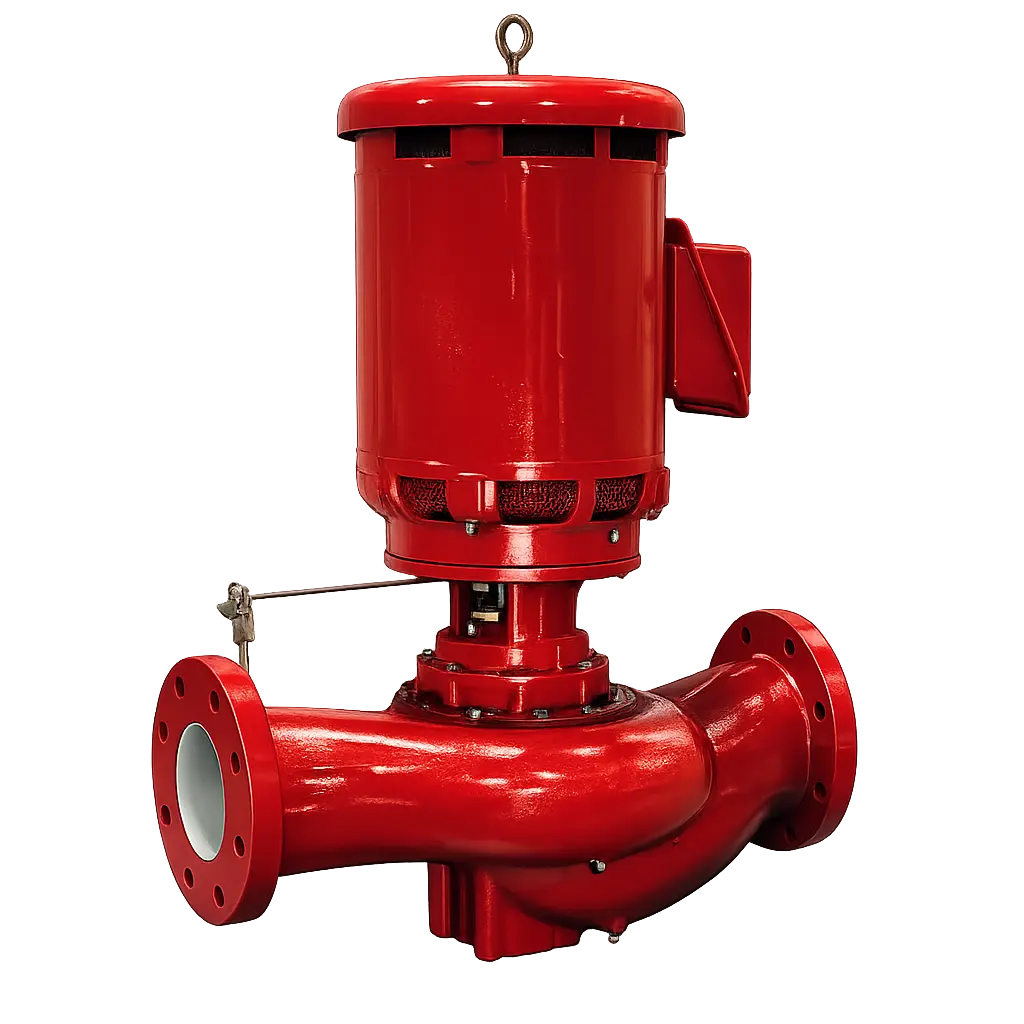

AC Fire Pump offers a range of vertical in-line pumps. The 1580 Series fire pumps are designed to provide water to stand pipe, sprinkler, chemical mitigation and hydrant systems for fire suppression in industrial and commercial facilities. The vertical design requires 30% less space than a traditional horizontal design. In-line equal sized suction and discharge flanges make this a great option for retrofits. The top pullout construction allows for servicing the pump without disturbing connecting piing. Impellers are dynamically balanced to reduce vibration and potential wear. In compliance with NFPA #20, UL, ULC, FM and ANSI.
35 GPM
35 GPM 1.5×1.5x7F 1580 Series 3500
50 GPM
50 GPM 1.5×1.5x7F 1580 Series 3500
50 GPM 2.5×2.5×9.5 1580 Series 3550
75 GPM
75 GPM 1.5×1.5x7F 1580 Series 3500
100 GPM
100 GPM 2.5×2.5x7F 1580 Series 3500
100 GPM 2.5×2.5×9.5F 1580 Series 3550
150 GPM
150 GPM 2.5×2.5x7F 1580 Series 3500
150 GPM 2.5×2.5×9.5F 1580 Series 3550
200 GPM
200 GPM 2.5×2.5×9.5F 1580 Series 3550
200 GPM 3x3x7F 1580 Series 3525
250 GPM
250 GPM 2.5×2.5×9.5F 1580 Series 3550
250 GPM 3x3x7F 1580 Series 3525
250 GPM 4x4x7F 1580 Series 3550
300 GPM
300 GPM 3x3x7F 1580 Series 3525
300 GPM 3x3x9.5F 1580 Series 3550
300 GPM 4x4x7F 1580 Series 2960
300 GPM 4x4x7F 1580 Series 3550
300 GPM 4x4x9.5F 1580 Series 2960
300 GPM 4x4x9.5F 1580 Series 3550
400 GPM
400 GPM 4x4x7F 1580 Series 2960
400 GPM 4x4x7F 1580 Series 3550
400 GPM 4x4x9.5F 1580 Series 2960
400 GPM 4x4x9.5F 1580 Series 3550
400 GPM 6x6x9.5F-L 1580 Series 2960
400 GPM 6x6x9.5F-L 1580 Series 3550
400 GPM 6x6x11F-L 1580 Series 2960
400 GPM 6x6x11F-L 1580 Series 3550
400 GPM
450 GPM 4x4x7F 1580 Series 2960
450 GPM 4x4x7F 1580 Series 3550
450 GPM 4x4x9.5F 1580 Series 2960
450 GPM 4x4x9.5F 1580 Series 3550
500 GPM
500 GPM 4x4x7F 1580 Series 2960
500 GPM 4x4x7F 1580 Series 3550
500 GPM 4x4x9.5F 1580 Series 2960
500 GPM 4x4x9.5F 1580 Series 3550
500 GPM 6x6x9.5F-L 1580 Series 2960
500 GPM 6x6x9.5F-L 1580 Series 3550
500 GPM 6x6x11F-L 1580 Series 2960
500 GPM 6x6x11F-L 1580 Series 3550
750 GPM
750 GPM 6x6x9.5F-L 1580 Series 2960
750 GPM 6x6x9.5F-L 1580 Series 3550
750 GPM 6x6x11F-L 1580 Series 3550
750 GPM 6x6x11F-S 1580 Series 1780
750 GPM 8x8x9.5F 1580 Series 2960
1000 GPM
1000 GPM 8x8x9.5F 1580 Series 2960
1250 GPM
1250 GPM 8x8x13.5F 1580 Series 1450
1250 GPM 8x8x13.5F 1580 Series 1775
1250 GPM 8x8x18F 1580 Series 1450
1250 GPM 8x8x18F 1580 Series 1775
1500 GPM
1500 GPM 8x8x13.5F 1580 Series 1775
1500 GPM 8x8x18F 1580 Series 1775
Series 1580 Dimension Drawings
