VTP Vertical Turbine Pump
Vertical Turbine Pumps (VS1)

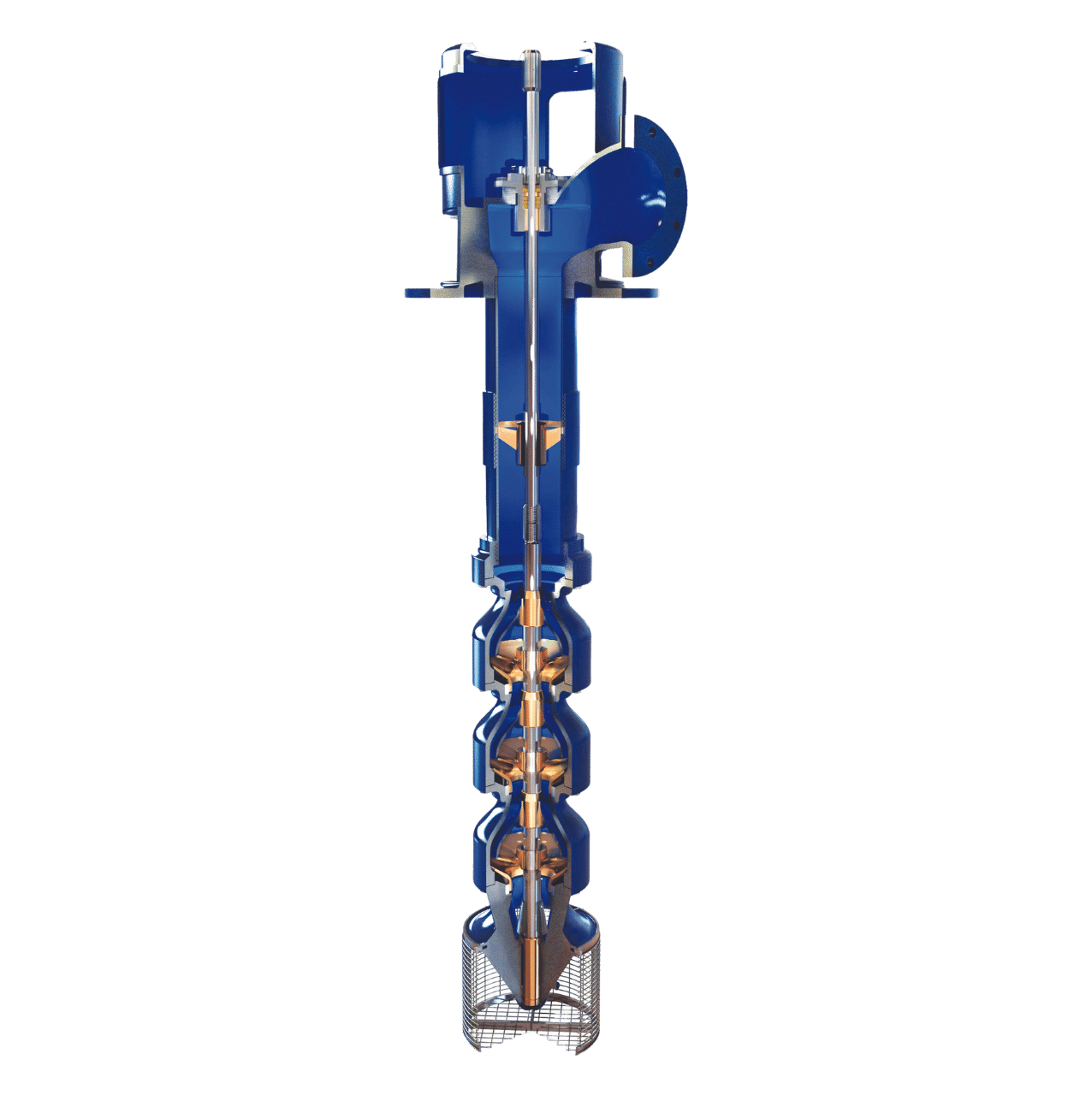

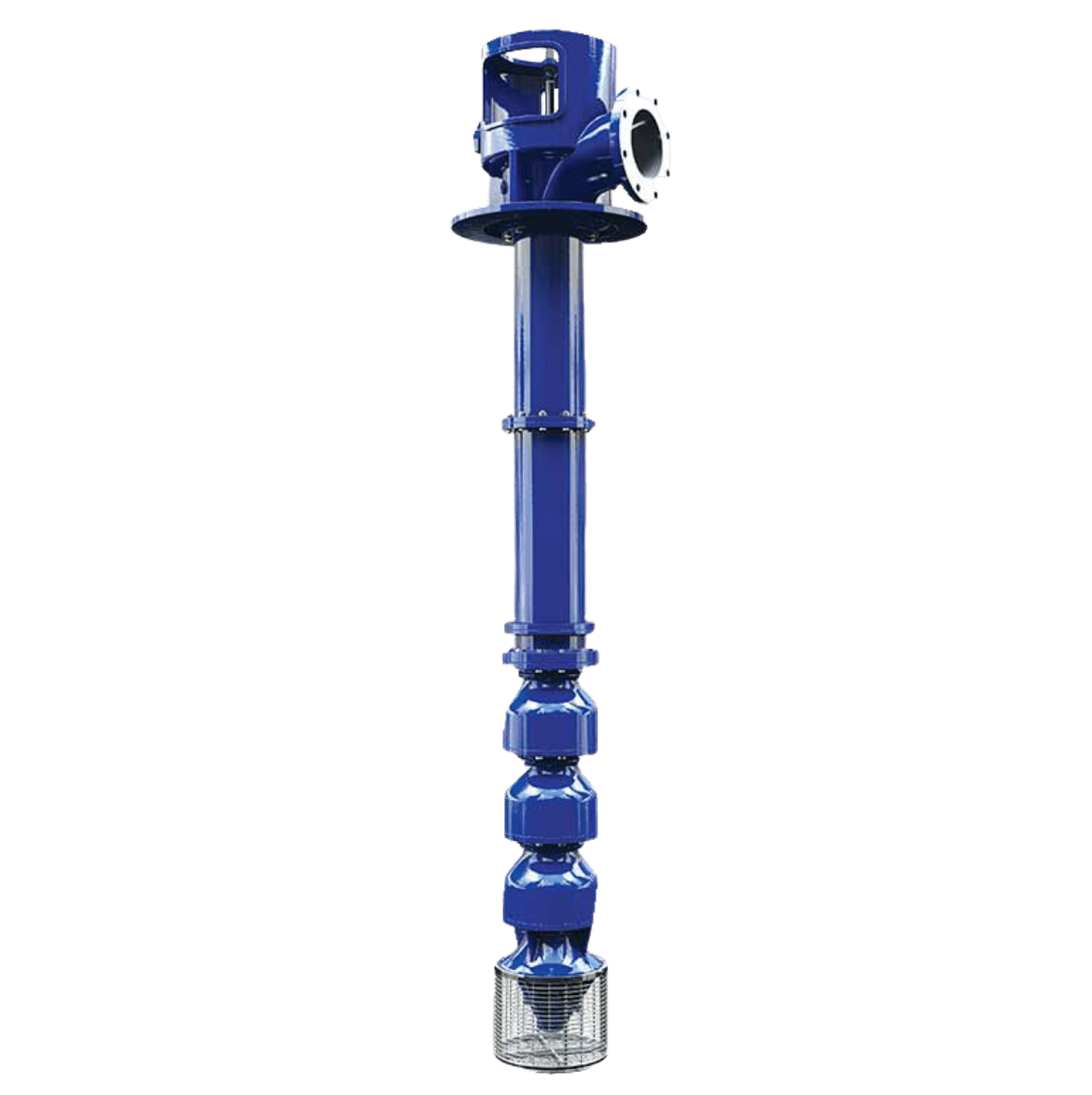

The VTP pump line is normally designed to operate in wells or sumps. Its bowl assembly consists primarily of a suction case or bell, one or more pump bowls and a discharge case. The pump bowl assembly is positioned in the sump or well at a depth to provide the proper submergence.
Operation limits:
Capacity: up to 13,636 m³/h (60,000 U.S. gpm).
Head: up to 762 m (2,500 ft).
Maximum Pressure: 74 bar (1,080 psi).
Temperature: 0 to 121 ºC (32 to 250 ºF).
Applications: Deep wells and sumps, agricultural irrigation, municipal water supply systems, water transfer, dewatering, condensate extraction, oil & gas production.
CHARACTERISTICS
- Multi-stage vertical centrifugal pumps with diffuser type bowl
- Collet mounted Semi-Open / Enclosed impellers
- Double suction first stage impeller available for ultra low NPSHR applications
- Counter clockwise rotation viewed from coupling end
- Product or oil/grease lubricated
- Basket or Conical strainer according to application requirements
- API 610 latest edition construction API pump type VS1 / VS6
STANDARD CONSTRUCTION MATERIALS
Bowls and impellers:
- Cast Iron Bowls
- Aluminum Bronze Impellers
- 416 SS Shafting
- Integrity cast wear surfaces with optional wear rings in Bronze or SS
Columns:
- Carbon Steel Pipe – Threaded or Flanged
- AISI – 1045 Carbon Steel or 416 SS Line Shafting
Discharge Head:
- Cast Iron with 125# ANSI FF Flanges
- Fabricated Steel with 150# or 300# ANSI Flanges (optional)
- Custom fabricated discharge head to meet your criteria is available
Bearing Material:
- Bronze (as standard)
- Other materials and configurations available on request
DESIGN FEATURES
- API 610 latest edition construction available (VS1 & VS6 types)
- Product or Oil lubricated
- Oversized Bowl Shaft Sizing for longer life
- Epoxy coated bowls
- Collet Mounted Impellers

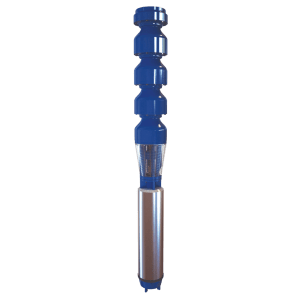

- Also available as Submersible VTP Pump for applications such as high temperature wells, wells with limited diameter, agricultural irrigation, deep well dewatering, large construction sites and others

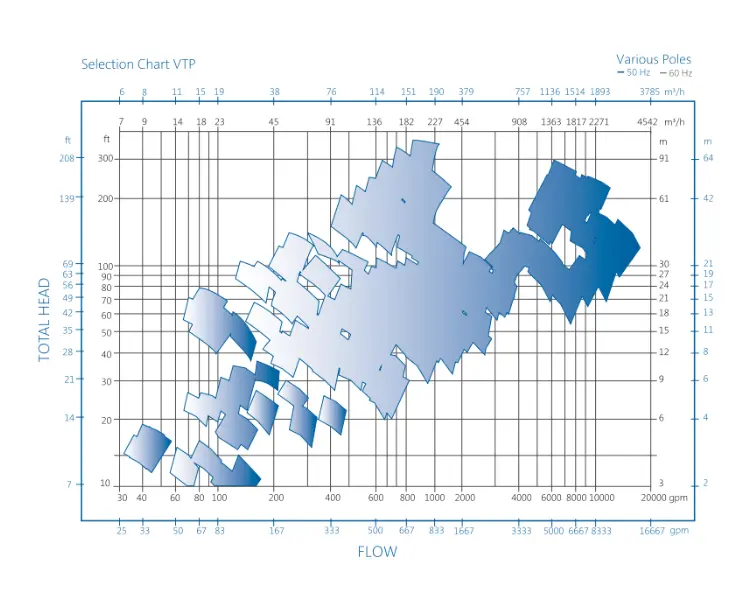

PERFORMANCE
